PX4 io mcu固件信息

Created2026-03-18|Updated2026-03-18|Dev

|Word Count:84|Reading Time:1mins|Post Views:

io mcu在这里是stm32f1xx系列芯片

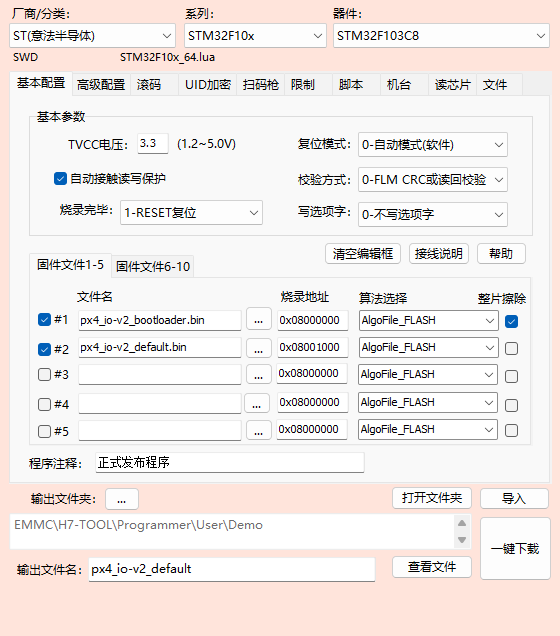

px4io的bootloader文件为px4_io-v2_bootloader.bin，烧录地址为0x08000000

px4io的firmware文件为px4_io-v2_default.bin，烧录地址为0x08001000

px4_io-v2_bootloader.bin下载地址：https://github.com/PX4/PX4-Autopilot/blob/main/boards/px4/io-v2/extras/px4_io-v2_bootloader.bin

px4_io-v2_default.bin下载地址（For PX6X）：https://github.com/PX4/PX4-Autopilot/blob/main/boards/px4/fmu-v6x/extras/px4_io-v2_default.bin
